CAP ALUM 6800UF 20% 35V SNAP

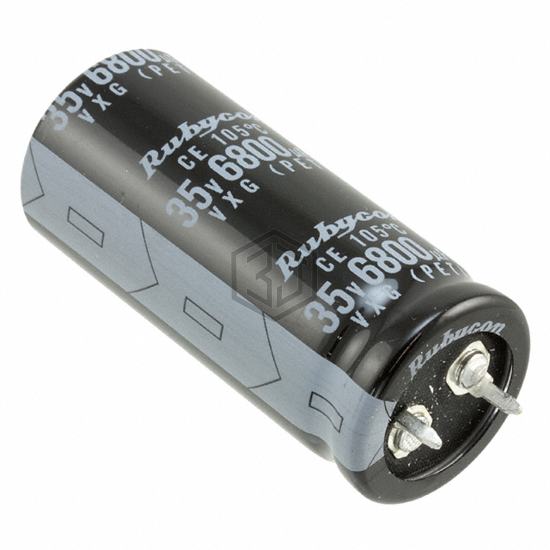

35VXG6800MEFCSN22X50 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 6800UF 20% 35V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - Snap-In.
In Stock: 9,781
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.49 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.8635 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 2.047" (52.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELG688M035AS2AA | KEMET | CAP ALUM SNAP-IN 105C | 96% | View |
| UHE1A682MHD6 | Nichicon | CAP ALUM 6800UF 20% 10V RADIAL | 77% | View |
| 25PX6800MEFC16X35.5 | Rubycon | CAP ALUM 6800UF 20% 25V RADIAL | 77% | View |
| UPW1E682MHD | Nichicon | CAP ALUM 6800UF 20% 25V RADIAL | 77% | View |
| EEU-FR0J682S | Panasonic Electronic Components | CAP ALUM 6800UF 20% 6.3V RADIAL | 74% | View |
| 25YXS6800MEFC18X40 | Rubycon | CAP ALUM 6800UF 20% 25V RADIAL | 73% | View |
