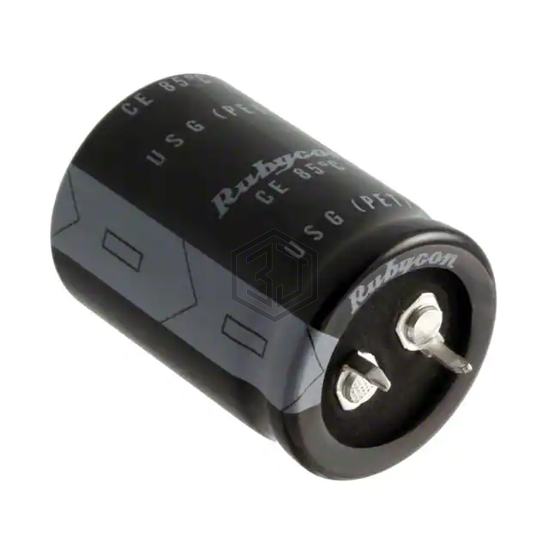

CAP ALUM 8200UF 20% 35V SNAP
35USG8200MEFCSN22X40 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 8200UF 20% 35V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - Snap-In.
In Stock: 1,618
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 8200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.47 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.991 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 381LQ822M035J022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 8200UF 20% 35V SNAP | 91% | View |
| MAL215661822E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 8200UF 20% 50V SNAP | 82% | View |
| ESMH500VSN822MR35U | United Chemi-Con | CAP ALUM 8200UF 20% 50V SNAP | 77% | View |
| EEU-FS0J822SB | Panasonic Electronic Components | CAP ALUM 8200UF 20% 6.3V RADIAL | 68% | View |
| MAL215678822E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 8200UF 20% 63V SNAP | 64% | View |
| 6.3ZLH8200MEFCGC16X25 | Rubycon | CAP ALUM 8200UF 20% 6.3V RADIAL | 61% | View |
Submit your RFQ for 35USG8200MEFCSN22X40 and get a quote within 24 hours.
