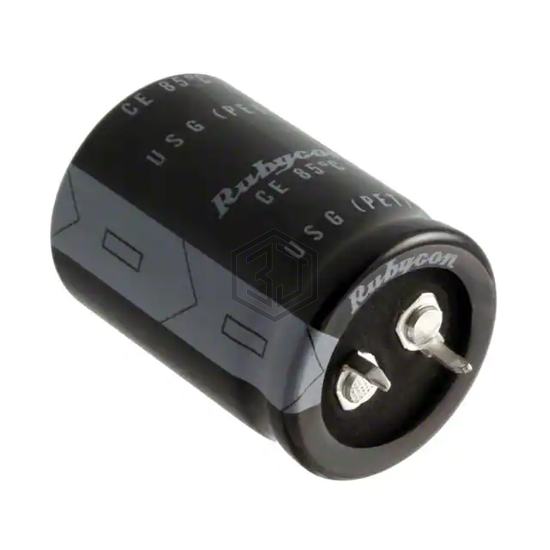

CAP ALUM 12000UF 20% 35V SNAP
35USG12000MEFCSN25X40 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 12000UF 20% 35V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - Snap-In.
In Stock: 174
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 12000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.51 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.187 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
Submit your RFQ for 35USG12000MEFCSN25X40 and get a quote within 24 hours.
