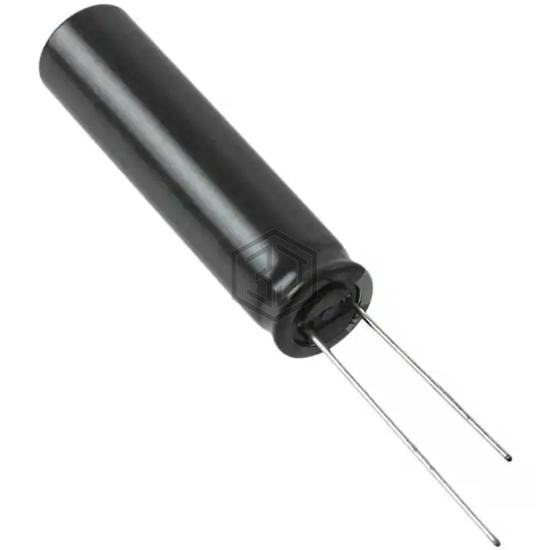

CAP ALUM 1200UF 20% 35V RADIAL
35TXW1200MEFC10X40 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 1200UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 7,589
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.87 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.12 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FC1V122 | Panasonic Electronic Components | CAP ALUM 1200UF 20% 35V RADIAL | 90% | View |
| ELXZ350ELL122ML20S | United Chemi-Con | CAP ALUM 1200UF 20% 35V RADIAL | 84% | View |
| EKYA630ELL122MLN3S | United Chemi-Con | CAP ALUM 1200UF 20% 63V RADIAL | 78% | View |
| LGN2Z122MELA45 | Nichicon | CAP ALUM 1200UF 20% 180V SNAP | 72% | View |
| 381LQ122M100H022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1200UF 20% 100V SNAP | 68% | View |
| EEU-FK1C122 | Panasonic Electronic Components | CAP ALUM 1200UF 20% 16V RAD TH | 50% | View |
