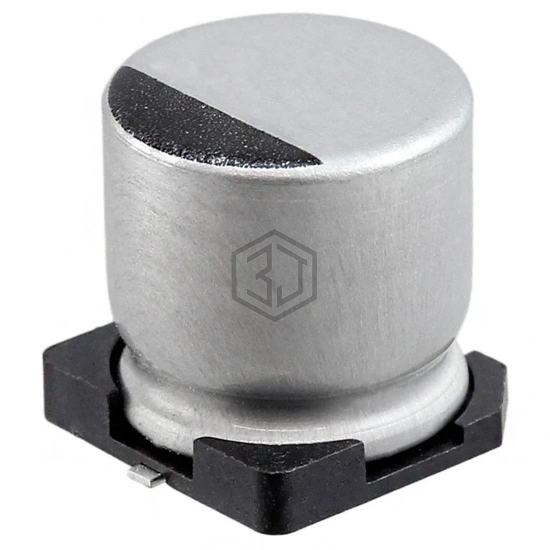

CAP ALUM 220UF 20% 35V SMD
35TXV220M10X10.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 220UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 8,562
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 200mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 180 mA @ 120 Hz |
| Ripple Current @ High Frequency | 300 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VUK221M1VTR-1313S | Surge | CAP ALUM 35V POLAR | 96% | View |
| EEV-TG1E221P | Panasonic Electronic Components | CAP ALUM 220UF 20% 25V SMD | 87% | View |
| MAL216099001E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 35V SMD | 80% | View |
| VUJ221M1HTR-1616S | SURGE | CAP ALUM 220UF 20% 50V SMD | 66% | View |
| EEE-TK1A221P | Panasonic Electronic Components | CAP ALUM 220UF 20% 10V SMD | 61% | View |
| MAL214097111E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 50V SMD | 56% | View |
Submit your RFQ for 35TXV220M10X10.5 and get a quote within 24 hours.
