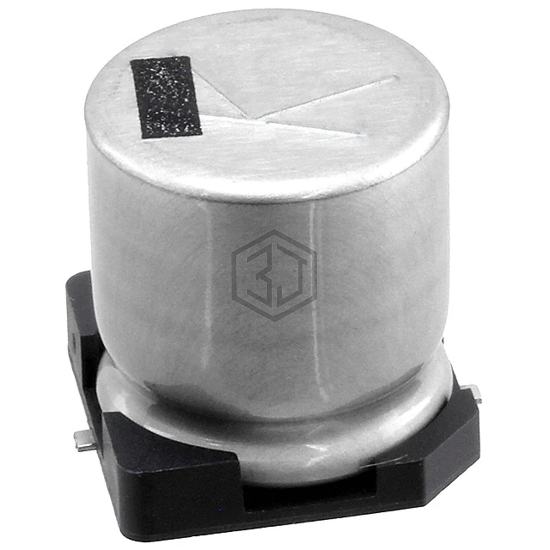

CAP ALUM 470UF 20% 35V SMD
35TLV470M12.5X13.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 470UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 6,335
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 660 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.1 A @ 100 kHz |
| Impedance | 65 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | 0.512" L x 0.512" W (13.00mm x 13.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AFK477M35H32T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 470UF 20% 35V SMD | 94% | View |
| UCD1V471MNS1MS | Nichicon | CAP ALUM 35V POLAR | 94% | View |
| EMK1EM471GB0D00R | AiSHi Capacitors | ALUMINUM E-CAP SMT | 78% | View |
| EEE-FTA471XAL | Panasonic Electronic Components | CAP ALUM 470UF 20% 10V SMD | 52% | View |
| EEE-FK1C471P | Panasonic Electronic Components | CAP ALUM 470UF 20% 16V SMD | 50% | View |
| EEE-FK1A471GL | Panasonic Electronic Components | CAP ALUM 470UF 20% 10V SMD | 50% | View |
Submit your RFQ for 35TLV470M12.5X13.5 and get a quote within 24 hours.
