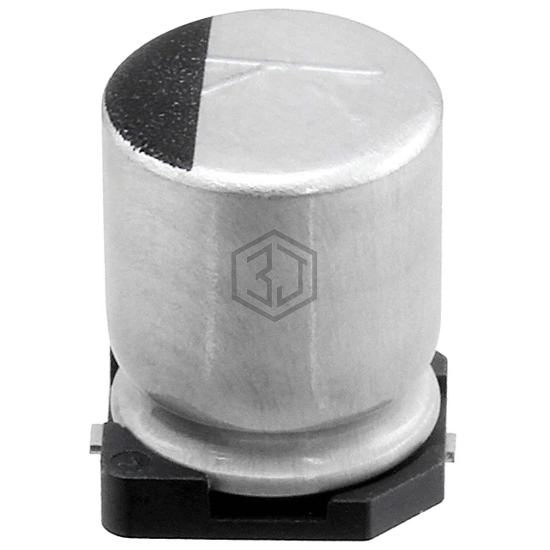

CAP ALUM 220UF 20% 35V SMD
35TLV220M8X10.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 220UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 2,931
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 360 mA @ 120 Hz |
| Ripple Current @ High Frequency | 600 mA @ 100 kHz |
| Impedance | 160 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 35JKV220M10X10.5 | Rubycon | CAP ALUM 220UF 20% 35V SMD | 100% | View |
| MAL216099001E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 35V SMD | 87% | View |
| AFK227M25F24VT-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 220UF 20% 25V SMD | 83% | View |
| 25SGV220M8X10.5 | Rubycon | CAP ALUM 220UF 20% 25V SMD | 82% | View |
| VZH221M1ETR-1008S | SURGE | CAP ALUM 220UF 20% 25V SMD | 80% | View |
| AEA1213221M063R | KYOCERA AVX | ALUMINUM CAP | 73% | View |
Submit your RFQ for 35TLV220M8X10.5 and get a quote within 24 hours.
