CAP ALUM 1500UF 20% 35V SMD

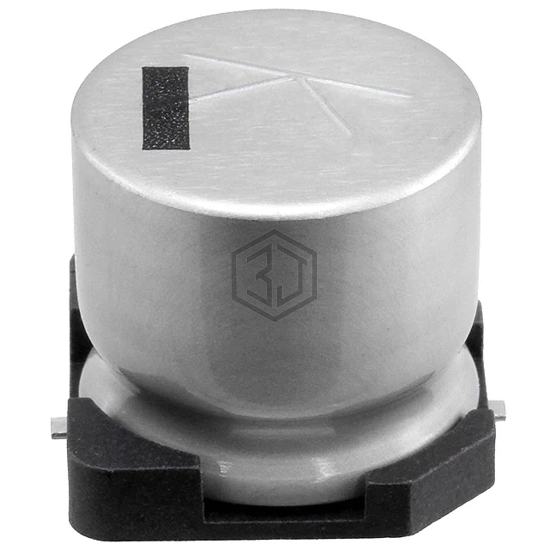

35TLV1500M18X16.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 1500UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 6,239
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.236 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.06 A @ 100 kHz |
| Impedance | 44 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | 0.748" L x 0.748" W (19.00mm x 19.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215099015E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 35V SMD | 93% | View |
| AEA1616152M035R | KYOCERA AVX | ALUMINUM CAP | 92% | View |
| MAL224699011E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 35V SMD | 90% | View |
| EEE-FK1E152AV | Panasonic Electronic Components | CAP ALUM 1500UF 20% 25V SMD | 84% | View |
| MAL215099615E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 25V SMD | 79% | View |
| EEE-FT1A152AV | Panasonic Electronic Components | CAP ALUM 1500UF 20% 10V SMD | 56% | View |
Submit your RFQ for 35TLV1500M18X16.5 and get a quote within 24 hours.
