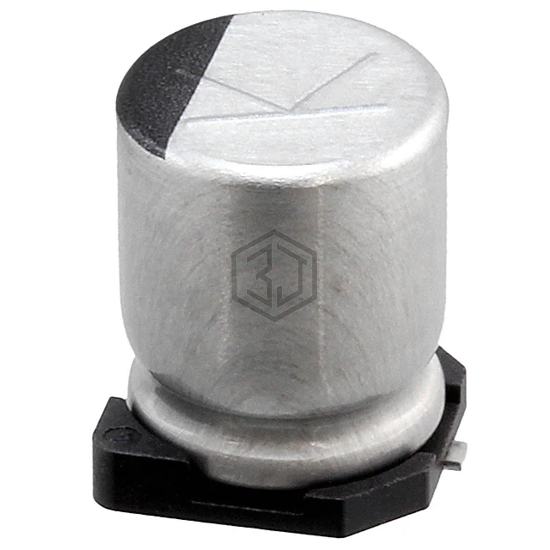

CAP ALUM 220UF 20% 35V SMD
35TKV220M8X10.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 220UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 3,300
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 80mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 510 mA @ 120 Hz |
| Ripple Current @ High Frequency | 850 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| AFK227M35F24VT-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 220UF 20% 35V SMD | 96% | View |
| EEE-FK1V221V | Panasonic Electronic Components | CAP ALUM 220UF 20% 35V SMD | 89% | View |
| 50TZV220M10X10.5 | Rubycon | CAP ALUM 220UF 20% 50V SMD | 78% | View |
| EEE-FK1J221AV | Panasonic Electronic Components | CAP ALUM 220UF 20% 63V SMD | 77% | View |
| UUD1V221MNL1GS | Nichicon | CAP ALUM 220UF 20% 35V SMD | 65% | View |
| UE227M050HGKTA | Aillen | CAP. ALUM 220UF 50V 20% SMD | 62% | View |
