CAP ALUM 47UF 20% 35V SMD

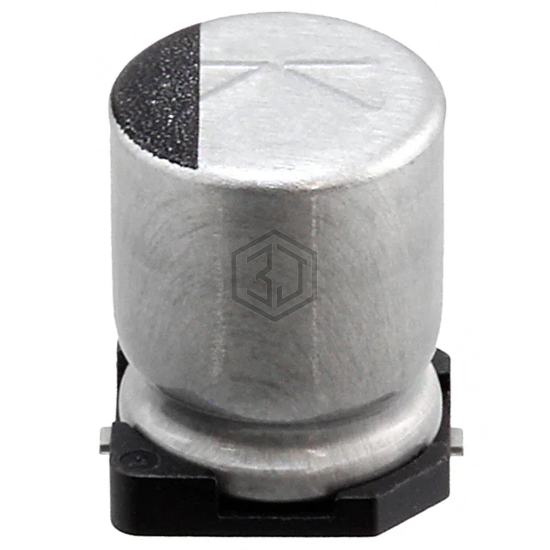

35THV47M8X10.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 47UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 1,421
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 300mOhm @ 100kHz |
| Lifetime @ Temp. | 3000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 150 mA @ 120 Hz |
| Ripple Current @ High Frequency | 300 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EMHB350ADA470MHA0G | United Chemi-Con | CAP ALUM 47UF 20% 35V SMD | 85% | View |
| EEE-TC1V470V | Panasonic Electronic Components | CAP ALUM 47UF 20% 35V SMD | 79% | View |
| EMVH500ADA470MJA0G | United Chemi-Con | CAP ALUM 47UF 20% 50V SMD | 74% | View |
| 25THV47M6.3X8 | Rubycon | CAP ALUM 47UF 20% 25V SMD | 70% | View |
| MAL216099801E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 63V SMD | 70% | View |
| EMVH250ADA470MH63G | United Chemi-Con | CAP ALUM 47UF 20% 25V SMD | 57% | View |
