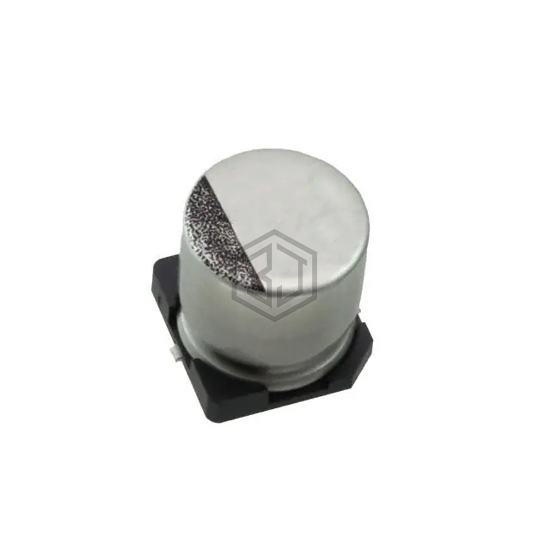

CAP ALUM 820UF 20% 35V SMD
35TGV820M16X16.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 820UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 8,141
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 66mOhm @ 100kHz |
| Lifetime @ Temp. | 5000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 720 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.2 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | 0.669" L x 0.669" W (17.00mm x 17.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214099015E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 820UF 20% 35V SMD | 100% | View |
| UCX1V821MNQ1MS | Nichicon | CAP ALUM 820UF 20% 35V SMD | 96% | View |
| UCX1H821MNQ1MS | Nichicon | CAP ALUM 820UF 20% 50V SMD | 85% | View |
| UCX1H821MNS1ZD | Nichicon | CAP ALUM 820UF 20% 50V SMD | 85% | View |
| MAL214099116E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 820UF 20% 50V SMD | 77% | View |
| 16TGV820M12.5X13.5 | Rubycon | CAP ALUM 820UF 20% 16V SMD | 62% | View |
Submit your RFQ for 35TGV820M16X16.5 and get a quote within 24 hours.
