CAP ALUM 1000UF 20% 35V SMD

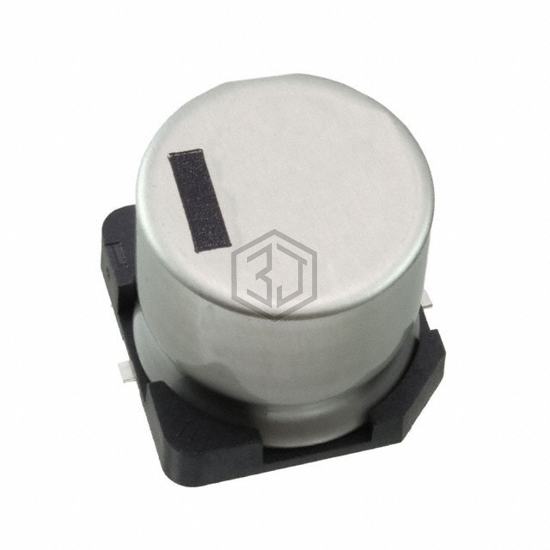

35TGV1000M18X16.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 1000UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 117
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 64mOhm @ 100kHz |
| Lifetime @ Temp. | 5000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 780 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.3 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | 0.748" L x 0.748" W (19.00mm x 19.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
Submit your RFQ for 35TGV1000M18X16.5 and get a quote within 24 hours.
