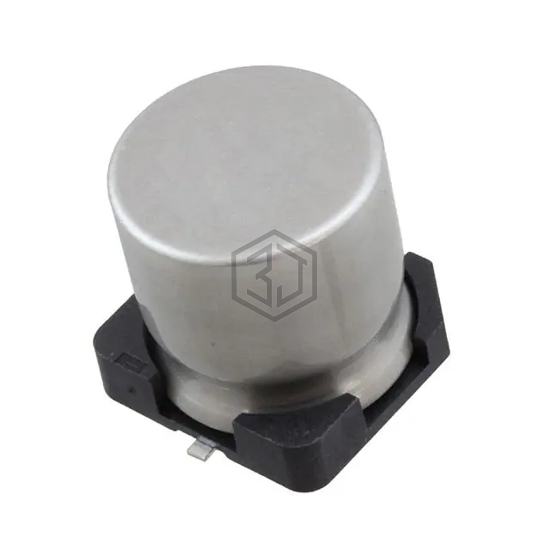

CAP ALUM 470UF 20% 35V SMD
35SGV470M16X16.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 470UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 2,478
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 490 mA @ 120 Hz |
| Ripple Current @ High Frequency | 588 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | 0.669" L x 0.669" W (17.00mm x 17.00mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FK1V471SL | Panasonic Electronic Components | CAP ALUM 470UF 20% 35V SMD | 88% | View |
| EEE-FK1V471SP | Panasonic Electronic Components | CAP ALUM 470UF 20% 35V SMD | 88% | View |
| AEA1213471M035R | KYOCERA AVX | ALUMINUM CAP | 78% | View |
| EEV477M025S9PAA | KEMET | CAP ALUM 470UF 20% 25V SMD | 76% | View |
| EEE-FK1E471P | Panasonic Electronic Components | CAP ALUM 470UF 20% 25V SMD | 75% | View |
| EEE-FTJ471XAL | Panasonic Electronic Components | CAP ALUM 470UF 20% 6.3V SMD | 73% | View |
Submit your RFQ for 35SGV470M16X16.5 and get a quote within 24 hours.
