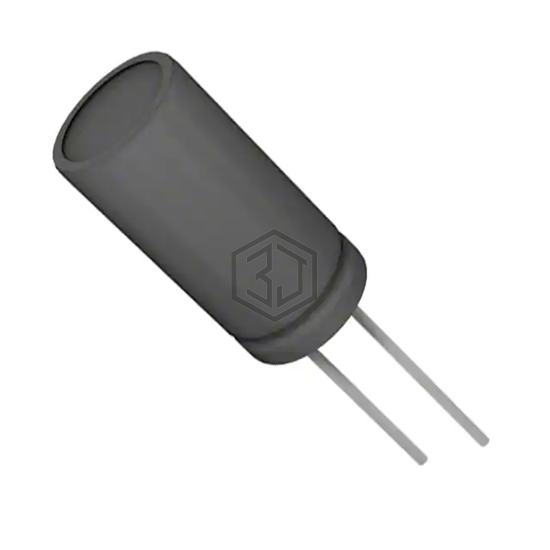

CAP ALUM 220UF 20% 35V RADIAL
35RX50220MEFCT810X20 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 220UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 5,142
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 150°C |
| Operating Temperature | -40°C ~ 150°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 184 mA @ 120 Hz |
| Ripple Current @ High Frequency | 460 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL216030221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 35V RADIAL | 100% | View |
| UBX1E221MHL | Nichicon | CAP ALUM 220UF 20% 25V RADIAL | 80% | View |
| MAL216056221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 25V RADIAL | 78% | View |
| MAL216036221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 25V RADIAL | 78% | View |
| MAL216066221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 25V RADIAL | 78% | View |
| 35RX50220M10X20 | Rubycon | CAP ALUM 220UF 20% 35V RADIAL TH | 78% | View |
Submit your RFQ for 35RX50220MEFCT810X20 and get a quote within 24 hours.
