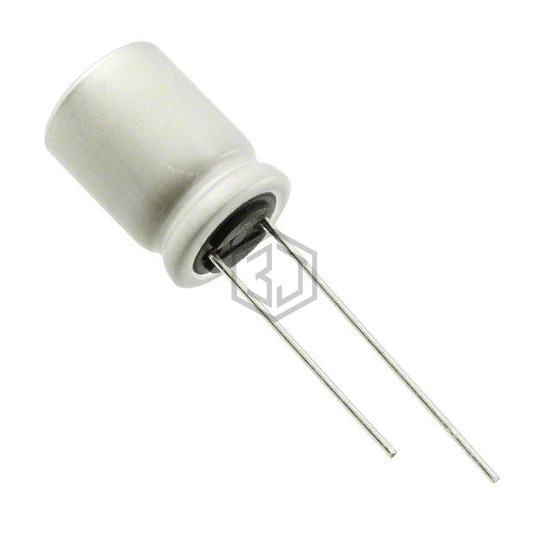

CAP ALUM POLY 150UF 20% 35V T/H
35PZA150M10X13 is a Aluminum - Polymer Capacitors manufactured by Rubycon. CAP ALUM POLY 150UF 20% 35V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 6,378
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 26mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 135 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.7 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
35PZA150M10X13 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 870055675010 | Würth Elektronik | CAP ALUM POLY 150UF 20% 35V T/H | 85% | View |
| UGV1E151MP26308 | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 81% | View |
| A759MW157M1JAAE048 | KEMET | CAP ALUM POLY 150UF 20% 63V T/H | 81% | View |
| 16SEPC150MD | Panasonic Electronic Components | CAP ALUM POLY 150UF 20% 16V T/H | 71% | View |
| 16SEPC150MD+S | Panasonic Electronic Components | CAP ALUM POLY 150UF 20% 16V T/H | 71% | View |
| PLS1A151MDL4 | Nichicon | CAP ALUM POLY 150UF 20% 10V T/H | 68% | View |
Submit your RFQ for 35PZA150M10X13 and get a quote within 24 hours.
