CAP ALUM 2200UF 20% 35V RADIAL

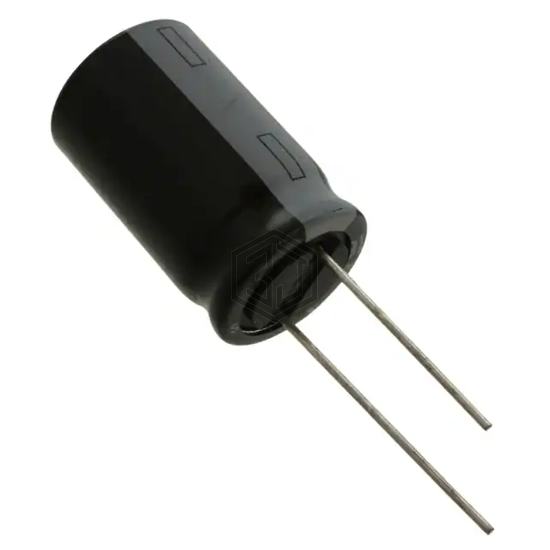

35PX2200MEFC16X25 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 2200UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 2,236
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.37 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.5755 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SEK222M035ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 2200UF 20% 35V RADIAL | 100% | View |
| UKA1V222MHD | Nichicon | CAP ALUM 2200UF 20% 35V RADIAL | 96% | View |
| HTK35V222M16X25 | Meritek | CAP ALUM 2200UF 20% 35V RADIAL | 89% | View |
| ELXZ350ELL222MM25S | United Chemi-Con | CAP ALUM 2200UF 20% 35V RADIAL | 77% | View |
| UPA1V222MHD | Nichicon | CAP ALUM 2200UF 20% 35V RADIAL | 74% | View |
| MAL211845222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 16V T/H | 62% | View |
Submit your RFQ for 35PX2200MEFC16X25 and get a quote within 24 hours.
