CAP ALUM POLY HYB 68UF 35V SMD

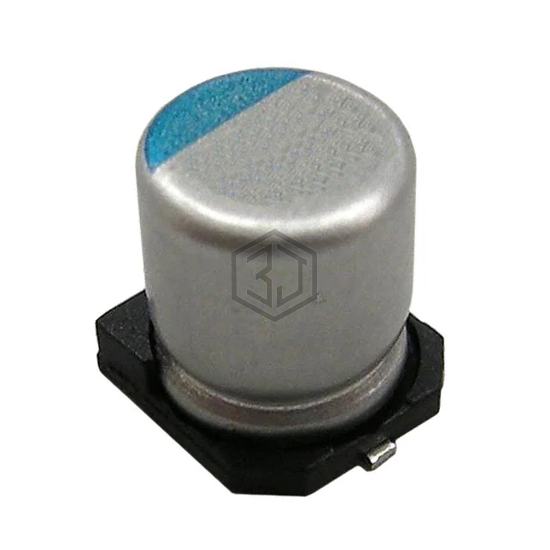

35PHV68M6.3X8 is a Aluminum - Polymer Capacitors manufactured by Rubycon. CAP ALUM POLY HYB 68UF 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 135°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 9,928
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 35mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 135°C |
| Operating Temperature | -55°C ~ 135°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 110 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.2 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 50PHV68M8X10.5 | Rubycon | CAP ALUM POLY HYB 68UF 50V SMD | 87% | View |
| GYC1V680MCW1GS | Nichicon | CAP ALUM POL HY 68UF 20% 35V SMD | 74% | View |
| 50PSV68M8X10.5 | Rubycon | CAP ALUM POLY HYB 68UF 50V SMD | 73% | View |
| HHXE250ARA560MF61G | United Chemi-Con | CAP ALUM HYBRID 56UF 20% 25V SMD | 66% | View |
| 63PHV68M10X12.5 | Rubycon | CAP ALUM POLY HYB 68UF 63V SMD | 64% | View |
| 25PHV56M6.3X6.1 | Rubycon | CAP ALUM POLY HYB 56UF 25V SMD | 61% | View |
