CAP ALUM 10UF 20% 35V SMD

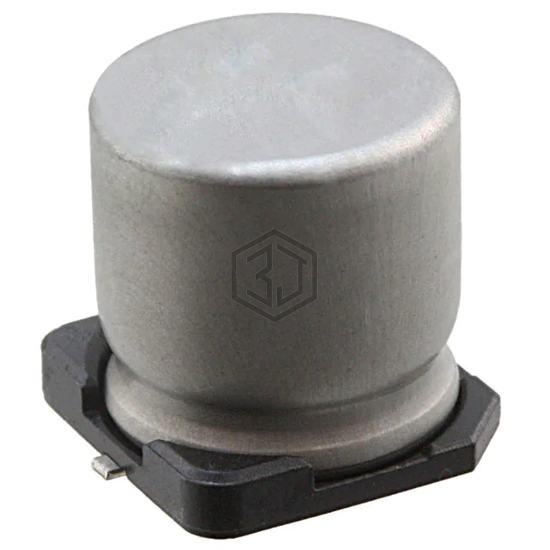

35NSEV10M6.3X5.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 10UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 3,843
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 29 mA @ 120 Hz |
| Ripple Current @ High Frequency | 43.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.217" (5.50mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TYEH1V106E55MTR | TE Connectivity Passive Product | CAP ALUM 10UF 20% 35V SMD | 87% | View |
| EEE-HD1C100AR | Panasonic Electronic Components | CAP ALUM 10UF 20% 16V SMD | 76% | View |
| UE106M016HCHTA | Aillen | CAP. ALUM 10UF 16V 20% SMD | 67% | View |
| EMZA250ADA100MD61G | United Chemi-Con | CAP ALUM 10UF 20% 25V SMD | 67% | View |
| EEV106M050A9GAA | KEMET | CAP ALUM 10UF 20% 50V SMD | 65% | View |
| UCM1H100MCL6GS | Nichicon | CAP ALUM 10UF 20% 50V SMD | 64% | View |
Submit your RFQ for 35NSEV10M6.3X5.5 and get a quote within 24 hours.
