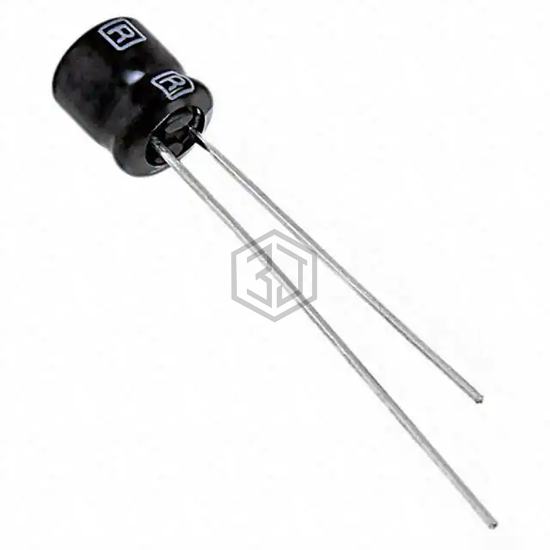

CAP ALUM 10UF 20% 35V RADIAL
35MS510MEFCTZ5X5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 10UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 4,707
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 27 mA @ 120 Hz |
| Ripple Current @ High Frequency | 40.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.256" (6.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| USW1V100MDD1TE | Nichicon | CAP ALUM 10UF 20% 35V RADIAL | 96% | View |
| UMW1E100MDD | Nichicon | CAP ALUM 10UF 20% 25V RADIAL | 90% | View |
| EEA-GA1E100 | Panasonic Electronic Components | CAP ALUM 10UF 20% 25V RADIAL | 79% | View |
| 25ZLG10MEFCTZ4X7 | Rubycon | CAP ALUM 10UF 20% 25V RADIAL | 72% | View |
| MAL211651109E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10UF 20% 50V RADIAL | 65% | View |
| ED1H100MP20511ERU | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 52% | View |
Submit your RFQ for 35MS510MEFCTZ5X5 and get a quote within 24 hours.
