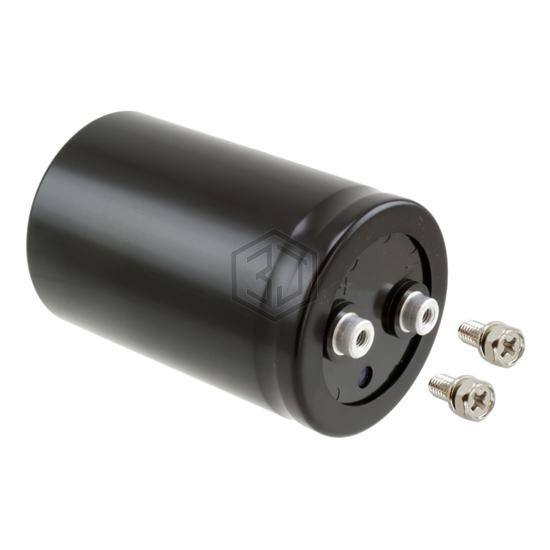

CAP ALUM 150000UF 20% 35V SCREW
35LSQ150000MEFC64X99 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 150000UF 20% 35V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can - Screw Terminals.
In Stock: 7,924
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 14.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 15.768 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.110" (28.20mm) |
| Size / Dimension | 2.520" Dia (64.00mm) |
| Height - Seated (Max) | 4.016" (102.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL210117154E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150000UF 20% 40V SCREW | 83% | View |
| MAL210147154E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150000UF 20% 40V SCREW | 78% | View |
| E36D600LPN154TEM9U | United Chemi-Con | CAP ALUM 150000UF 60V SCREW | 65% | View |
| MAL210677154E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150000UF 40V SCREW | 63% | View |
| LNT1J154MSE | Nichicon | CAP ALUM 150000UF 20% 63V SCREW | 63% | View |
| MAL210138154E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150000UF 20% 63V SCREW | 62% | View |
