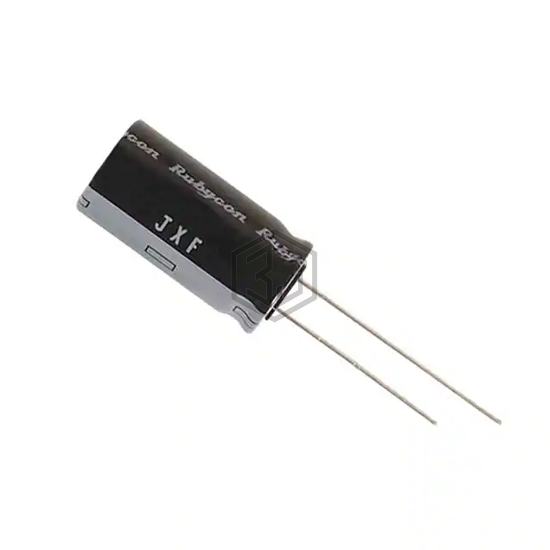

CAP ALUM 1800UF 20% 35V RADIAL
35JXF1800MEFC12.5X30 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 1800UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 342
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.524 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 25 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LXZ35VB182M18X20LL | United Chemi-Con | CAP ALUM 1800UF 20% 35V RADIAL | 98% | View |
| UPW1V182MHH6 | Nichicon | CAP ALUM 1800UF 20% 35V RADIAL | 89% | View |
| EEU-FC1V182L | Panasonic Electronic Components | CAP ALUM 1800UF 20% 35V RADIAL | 86% | View |
| MAL214651182E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1800UF 20% 50V RADIAL | 82% | View |
| B41866C5188M000 | EPCOS - TDK Electronics | CAP ALUM 1800UF 20% 25V RADIAL | 70% | View |
| EEU-FC0J182B | Panasonic Electronic Components | CAP ALUM 1800UF 20% 6.3V RADIAL | 60% | View |
