CAP ALUM 6800UF 20% 350V SCREW

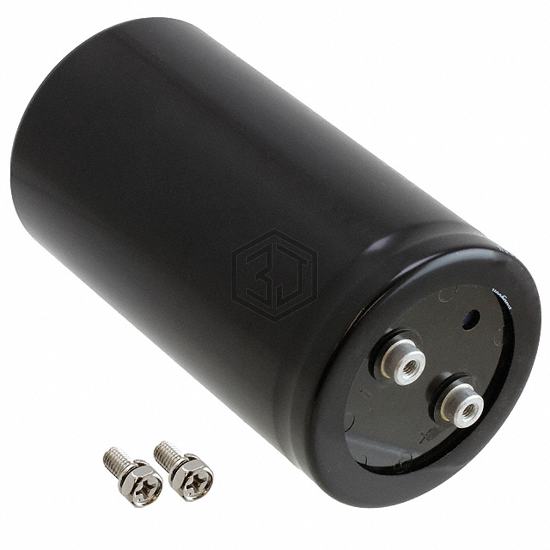

350LSG6800MNB77X141 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 6800UF 20% 350V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 105°C, voltage - rated 350 V, package / case Radial, Can - Screw Terminals.
In Stock: 6,184
| Attribute | Value |
|---|---|
| Product Status | Last Time Buy |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 14.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 19.74 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.236" (31.40mm) |
| Size / Dimension | 3.032" Dia (77.00mm) |
| Height - Seated (Max) | 5.630" (143.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
350LSG6800MNB77X141 is Last Time Buy. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL210453682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 250V SCREW | 84% | View |
| ALS80A682QP500 | KEMET | CAP ALUM 6800UF 20% 500V SCREW | 77% | View |
| ALS81H682QP500 | KEMET | CAP ALUM 6800UF 20% 500V SCREW | 77% | View |
| E32D101HPN682MAA5U | United Chemi-Con | CAP ALUM 6800UF 20% 100V SCREW | 66% | View |
| LNT2G682MSEJ | Nichicon | CAP ALUM 6800UF 20% 400V SCREW | 65% | View |
| MLS682M020EK1A | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 20V FLATPACK | 61% | View |
