CAP ALUM 10UF 20% 350V RADIAL

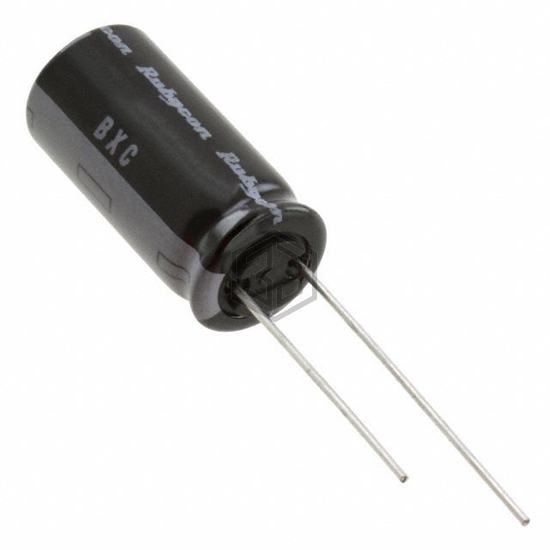

350BXC10MEFC10X20 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 10UF 20% 350V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 350 V, package / case Radial, Can.
In Stock: 1,506
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 105 mA @ 120 Hz |
| Ripple Current @ High Frequency | 350 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 50RX3010MT15X11 | Rubycon | CAP ALUM 10UF 20% 50V RADIAL | 100% | View |
| UCS2G100MPD | Nichicon | CAP ALUM 10UF 20% 400V RADIAL | 84% | View |
| UCS2D100MPD | Nichicon | CAP ALUM 10UF 20% 200V RADIAL | 71% | View |
| 35ZLG10MEFCTZ5X7 | Rubycon | CAP ALUM 10UF 20% 35V RADIAL | 67% | View |
| PF2D100MNN1012R | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 66% | View |
| SEK100M025ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 10UF 20% 25V RADIAL | 56% | View |
Submit your RFQ for 350BXC10MEFC10X20 and get a quote within 24 hours.
