CAP ALUM 2200UF 20% 25V RADIAL

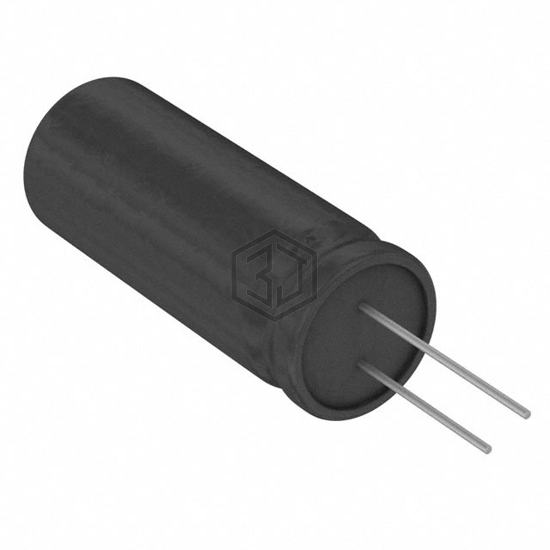

25ZLS2200MEFC12.5X30 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 2200UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 7,606
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 6000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.415 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.45 A @ 100 kHz |
| Impedance | 13 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 35YXH2200MEFCGC16X31.5 | Rubycon | CAP ALUM 2200UF 20% 35V RADIAL | 88% | View |
| RXW222M1EBK-1820S | SURGE | CAP ALUM 2200UF 20% 25V RADIAL | 79% | View |
| ELXV250EC3222MK40S | United Chemi-Con | CAP ALUM 2200UF 20% 25V RADIAL | 77% | View |
| 100MXC2200MEFC30X35 | Rubycon | CAP ALUM 2200UF 20% 100V SNAP | 74% | View |
| 180MXG2200MEFCSN35X40 | Rubycon | CAP ALUM 2200UF 20% 180V SNAP | 69% | View |
| 381LQ222M160K052 | Cornell Dubilier Electronics (CDE) | CAP ALUM 2200UF 20% 160V SNAP | 65% | View |
Submit your RFQ for 25ZLS2200MEFC12.5X30 and get a quote within 24 hours.
