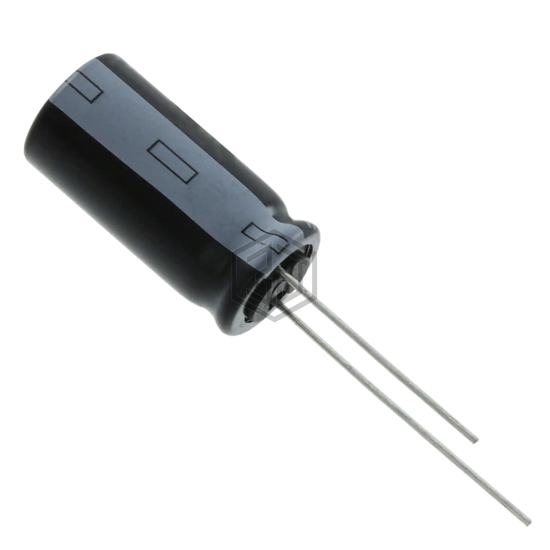

CAP ALUM 820UF 20% 25V RADIAL
25ZLK820M10X20 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 820UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 2,542
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 864 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.88 A @ 100 kHz |
| Impedance | 28 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FM1E821LB | Panasonic Electronic Components | CAP ALUM 820UF 20% 25V RADIAL | 76% | View |
| EKYA350ELL821MJ25S | United Chemi-Con | CAP ALUM 820UF 20% 35V RADIAL | 72% | View |
| 63ZLJ820M16X20 | Rubycon | CAP ALUM 820UF 20% 63V RADIAL | 66% | View |
| ELXZ630ELL821MM25S | United Chemi-Con | CAP ALUM 820UF 20% 63V RADIAL | 62% | View |
| LGG2E821MELB35 | Nichicon | CAP ALUM 820UF 20% 250V SNAP | 58% | View |
| 381LX821M180K032 | Cornell Dubilier Electronics (CDE) | CAP ALUM 820UF 20% 180V SNAP | 58% | View |
