CAP ALUM 3300UF 20% 25V RADIAL

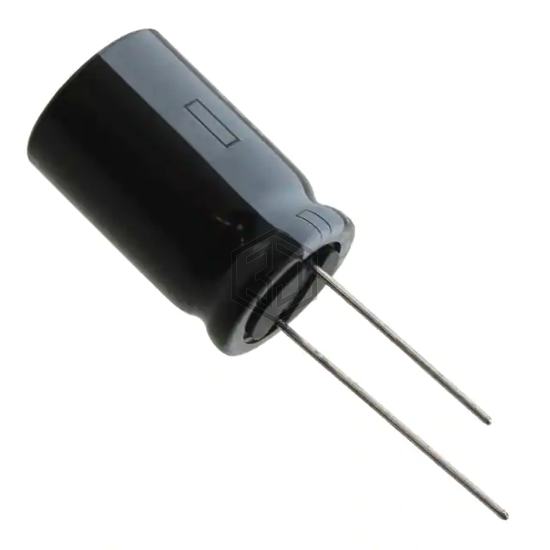

25ZLH3300MRK16X25 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 3300UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 5,453
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.541 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.63 A @ 100 kHz |
| Impedance | 13 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL225066332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 25V RADIAL | 88% | View |
| MAL225056332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 25V RADIAL | 88% | View |
| 338KBM025M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 3300UF 20% 25V RADIAL | 87% | View |
| 35JXF3300MEFC16X30 | Rubycon | CAP ALUM 3300UF 20% 35V RADIAL | 78% | View |
| MAL212045332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 16V T/H | 66% | View |
| UPA1C332MHD6 | Nichicon | CAP ALUM 3300UF 20% 16V RADIAL | 65% | View |
