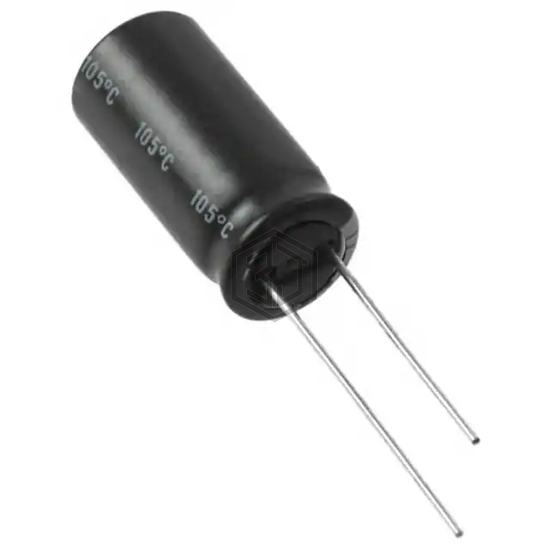

CAP ALUM 680UF 20% 25V RADIAL
25YXG680M10X20 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 680UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 2,444
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 770 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.4 A @ 100 kHz |
| Impedance | 46 mOhms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
25YXG680M10X20 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 25YXH680MEFC10X20 | Rubycon | CAP ALUM 680UF 20% 25V RADIAL | 100% | View |
| MAL214636681E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 680UF 20% 25V RADIAL | 93% | View |
| UPA1C681MPD6TD | Nichicon | CAP ALUM 680UF 20% 16V RADIAL | 73% | View |
| 757D687M035DK3D | Vishay Sprague | CAP ALUM 680UF 20% 35V RADIAL | 69% | View |
| 860160374028 | Würth Elektronik | CAP ALUM 680UF 20% 16V RADIAL | 60% | View |
| 80ZLH680MEFCGC16X31.5 | Rubycon | CAP ALUM 680UF 20% 80V RADIAL | 57% | View |
