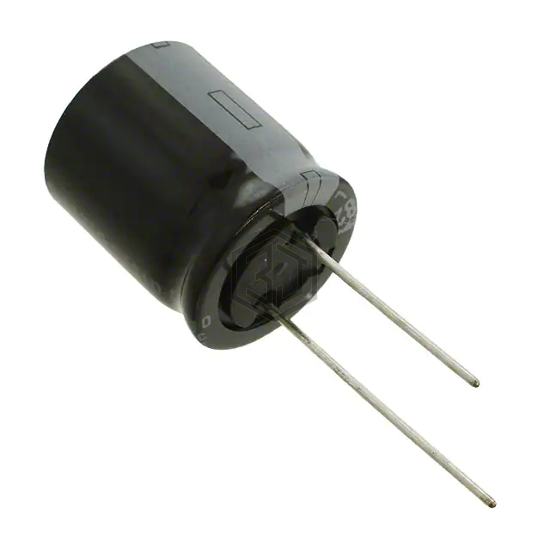

CAP ALUM 3300UF 20% 25V RADIAL
25WXA3300MEFC18X20 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 3300UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 9,041
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.38 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UVY1V332MHD | Nichicon | CAP ALUM 3300UF 20% 35V RADIAL | 79% | View |
| UVZ1V332MHD | Nichicon | CAP ALUM 3300UF 20% 35V RADIAL | 76% | View |
| 35PX3300MEFC16X25 | Rubycon | CAP ALUM 3300UF 20% 35V RADIAL | 74% | View |
| B41888D5338M | EPCOS - TDK Electronics | CAP ALUM 3300UF 20% 25V RADIAL | 73% | View |
| 16WXA3300MEFCGC16X16 | Rubycon | CAP ALUM 3300UF 20% 16V RADIAL | 71% | View |
| MAL225050332E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3300UF 20% 35V RADIAL | 56% | View |
Submit your RFQ for 25WXA3300MEFC18X20 and get a quote within 24 hours.
