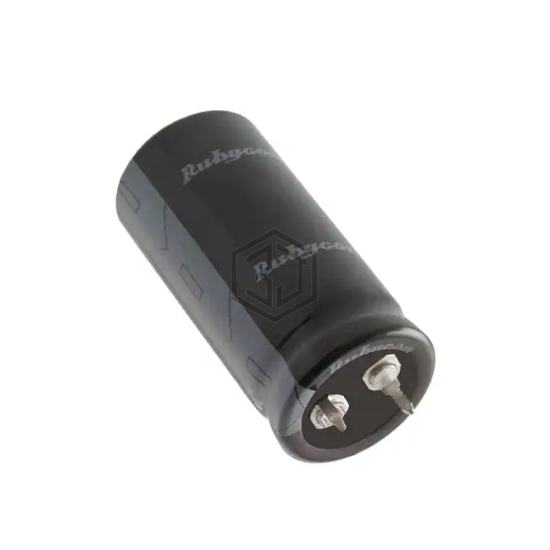

CAP ALUM 15000UF 20% 25V SNAP
25USC15000MEFCSN22X45 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 15000UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 2,099
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 15000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.08 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.692 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH250VEN153MQ40S | United Chemi-Con | CAP ALUM 15000UF 20% 25V SNAP | 100% | View |
| 159LBB025M2CE | Cornell Dubilier / Illinois Capacitor | CAP ALUM 15000UF 20% 25V SNAP | 94% | View |
| LKS1E153MESA | Nichicon | CAP ALUM 15000UF 20% 25V SNAP | 90% | View |
| MAL205045153E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15000UF 16V RADIAL | 81% | View |
| EKMQ250ELL153MP50S | United Chemi-Con | CAP ALUM 15000UF 20% 25V RADIAL | 80% | View |
| EKMH350VNN153MR35U | United Chemi-Con | CAP ALUM 15000UF 20% 35V SNAP | 78% | View |
Submit your RFQ for 25USC15000MEFCSN22X45 and get a quote within 24 hours.
