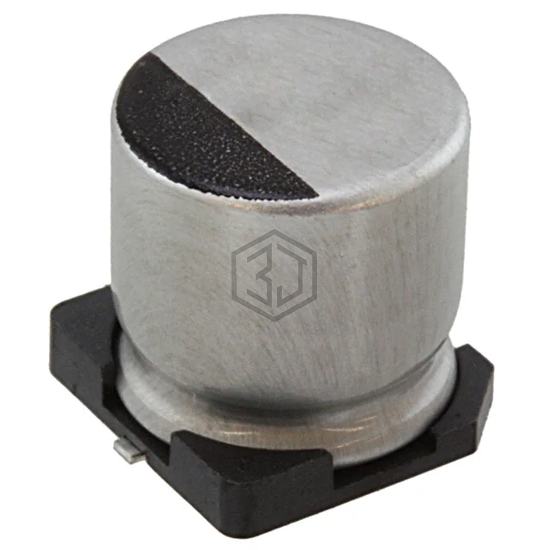

CAP ALUM 470UF 20% 25V SMD
25TKV470M10X10.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 470UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 1,049
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 60mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 714 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.19 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FK1E471GL | Panasonic Electronic Components | CAP ALUM 470UF 20% 25V SMD | 89% | View |
| EMZA250ARA471MJA0G | Chemi-Con | CAP ALUM 470UF 20% 25V SMD | 80% | View |
| EXV477M016S9PAA | KEMET | CAP ALUM 470UF 20% 16V SMD | 74% | View |
| UUX1C471MNL1GS | Nichicon | CAP ALUM 470UF 20% 16V SMD | 62% | View |
| EEV-FK1H471V | Panasonic Electronic Components | CAP ALUM 470UF 20% 50V SMD | 59% | View |
| UT477M035HGKTA | Aillen | CAP. ALUM 470UF 35V 20% SMD | 56% | View |
Submit your RFQ for 25TKV470M10X10.5 and get a quote within 24 hours.
