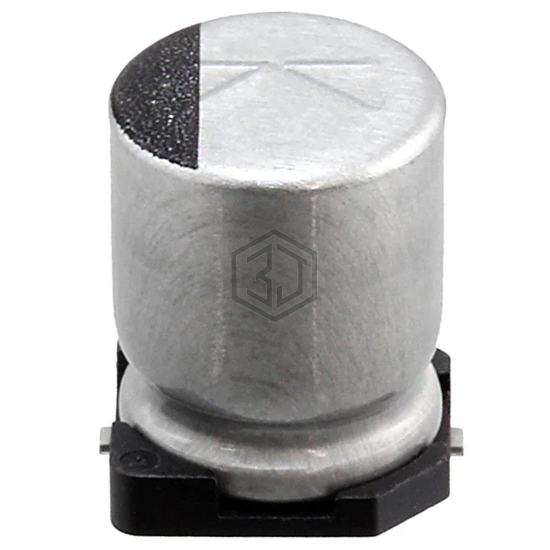

CAP ALUM 220UF 20% 25V SMD
25THV220M8X10.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 220UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 4,420
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 300mOhm @ 100kHz |
| Lifetime @ Temp. | 3000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 180 mA @ 120 Hz |
| Ripple Current @ High Frequency | 300 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MVH25VC221MJ10TP | United Chemi-Con | CAP ALUM 220UF 20% 25V SMD | 89% | View |
| EMHL350ARA221MHA0G | United Chemi-Con | CAP ALUM 220UF 20% 35V SMD | 79% | View |
| VUJ221M1VTR-1313S | SURGE | CAP ALUM 220UF 20% 35V SMD | 66% | View |
| MAL226099805E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 63V SMD | 54% | View |
| EMVH500ARA221MKE0S | United Chemi-Con | CAP ALUM 220UF 20% 50V SMD | 54% | View |
| MAL214097812E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 63V SMD | 52% | View |
Submit your RFQ for 25THV220M8X10.5 and get a quote within 24 hours.
