CAP ALUM 47UF 20% 25V SMD

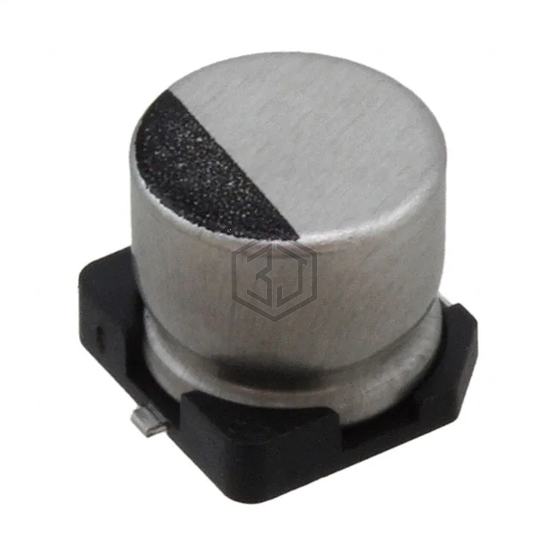

25SJV47M6.3X8 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 47UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 8,124
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 63 mA @ 120 Hz |
| Ripple Current @ High Frequency | 94.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VES470M1ETR-0605S | Surge | CAP ALUM 25V POLAR | 96% | View |
| EMLA250ADA470MF61G | United Chemi-Con | CAP ALUM 47UF 20% 25V SMD | 88% | View |
| EDT476M016A9HAA | KEMET | CAP ALUM 47UF 20% 16V SMD | 83% | View |
| EEE-FC0J470AR | Panasonic Electronic Components | CAP ALUM 47UF 20% 6.3V SMD | 76% | View |
| UUA0J470MCL1GS | Nichicon | CAP ALUM 47UF 20% 6.3V SMD | 55% | View |
| AFK476M25D16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 47UF 20% 25V SMD | 53% | View |
