CAP ALUM 33UF 20% 25V SMD

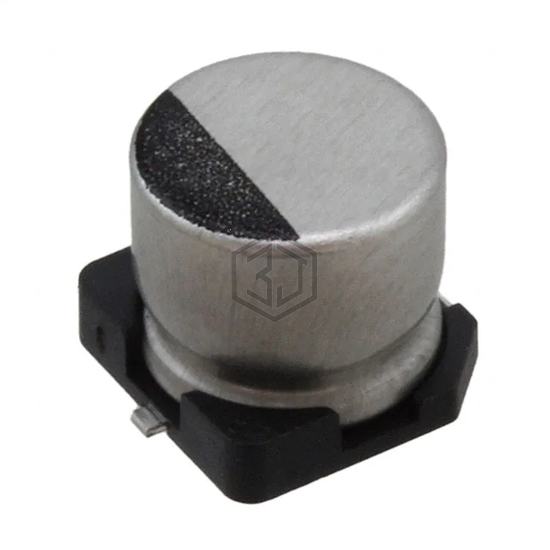

25SJV33M6.3X6.1 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 33UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 1,989
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 33 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 50 mA @ 120 Hz |
| Ripple Current @ High Frequency | 75 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UWT1V330MCR6GS | Nichicon | CAP ALUM 33UF 20% 35V SMD | 88% | View |
| AHA336M25D16B-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 33UF 20% 25V SMD | 84% | View |
| EEE-FN1C330R | Panasonic Electronic Components | CAP ALUM 33UF 20% 16V SMD | 78% | View |
| EEV-TG1V330P | Panasonic Electronic Components | CAP ALUM 33UF 20% 35V SMD | 77% | View |
| UWZ1C330MCL1GB | Nichicon | CAP ALUM 33UF 20% 16V SMD | 76% | View |
| AFK336M25C12T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 33UF 20% 25V SMD | 61% | View |
Submit your RFQ for 25SJV33M6.3X6.1 and get a quote within 24 hours.
