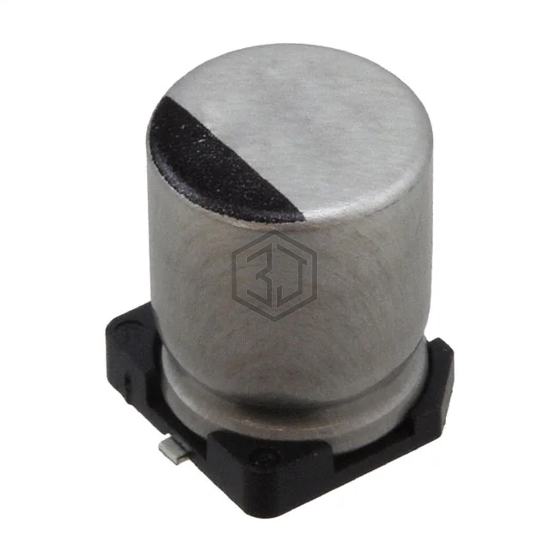

CAP ALUM 100UF 20% 25V SMD
25SGV100M8X10.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 100UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 3
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 180 mA @ 120 Hz |
| Ripple Current @ High Frequency | 216 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214097602E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100UF 20% 25V SMD | 88% | View |
| UZ107M035HEJTA | Aillen | CAP. ALUM 100UF 35V 20% SMD | 77% | View |
| AVEZ107M16D16T-F | Cornell Dubilier Electronics (CDE) | CAP ALUM 100UF 20% 16V SMD | 74% | View |
| UWG1C101MCL1GS | Nichicon | CAP ALUM 100UF 20% 16V SMD | 74% | View |
| 865060243004 | Würth Elektronik | CAP ALUM 100UF 20% 10V SMD | 73% | View |
| AEH0810101M016R | KYOCERA AVX | ALUMINUM CAP | 69% | View |
Submit your RFQ for 25SGV100M8X10.5 and get a quote within 24 hours.
