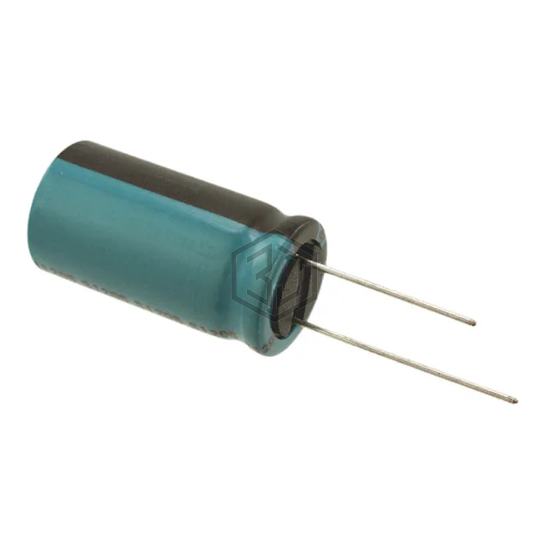

CAP ALUM 2200UF 20% 25V RADIAL
25RX302200M16X31.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 2200UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 130°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 7,964
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 4000 Hrs @ 130°C |
| Operating Temperature | -40°C ~ 130°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.84 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.3 A @ 100 kHz |
| Impedance | 34 mOhms |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-TP1E222 | Panasonic Electronic Components | CAP ALUM 2200UF 20% 25V RADIAL | 96% | View |
| EEU-TP1E222S | Panasonic Electronic Components | CAP ALUM 2200UF 20% 25V RADIAL | 96% | View |
| MAL216065222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 16V RADIAL | 74% | View |
| MAL216035222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 16V RADIAL | 74% | View |
| EEU-TP1V222 | Panasonic Electronic Components | CAP ALUM 2200UF 20% 35V RADIAL | 74% | View |
| 16RX302200MG412.5X25 | Rubycon | CAP ALUM 2200UF 20% 16V RADIAL | 67% | View |
Submit your RFQ for 25RX302200M16X31.5 and get a quote within 24 hours.
