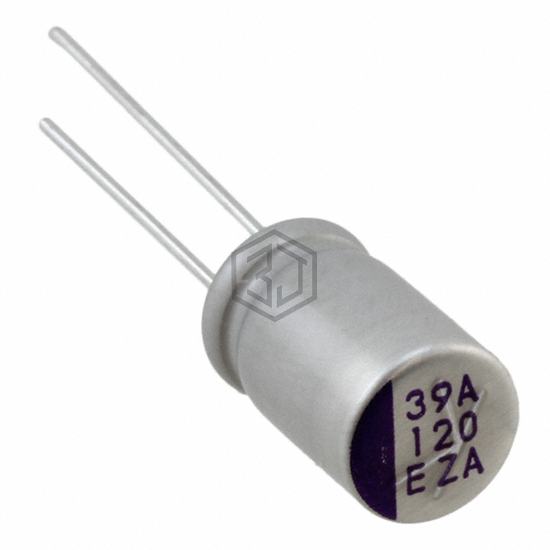

CAP ALUM POLY 120UF 20% 25V T/H
25PZA120M8X12.5 is a Aluminum - Polymer Capacitors manufactured by Rubycon. CAP ALUM POLY 120UF 20% 25V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 9,867
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 27mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | 120 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2.4 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
25PZA120M8X12.5 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PLX1E121MDL1TD | Nichicon | CAP ALUM POLY 120UF 20% 25V T/H | 99% | View |
| PLX1E121MDL1 | Nichicon | CAP ALUM POLY 120UF 20% 25V T/H | 99% | View |
| PLF1D121MCL2 | Nichicon | CAP ALUM POLY 120UF 20% 20V T/H | 86% | View |
| RPA0808121M035K | KYOCERA AVX | CAP ALUM POLY 120UF 20% 35V TH | 83% | View |
| APSG200ELL121MF05S | United Chemi-Con | CAP ALUM POLY 120UF 20% 20V T/H | 81% | View |
| 107ALG063MFBJ | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 100UF 20% 63V T/H | 66% | View |
Submit your RFQ for 25PZA120M8X12.5 and get a quote within 24 hours.
