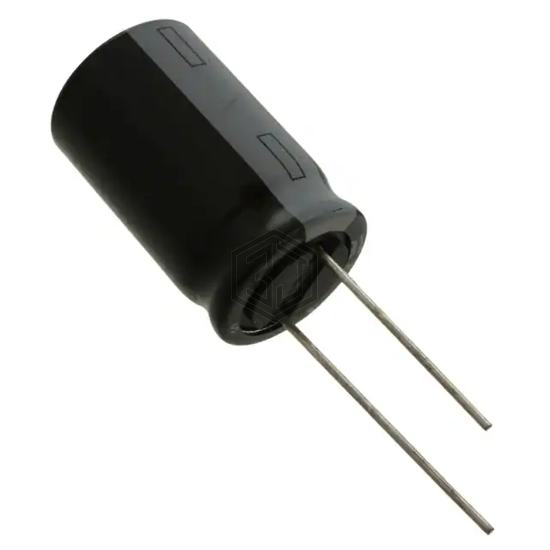

CAP ALUM 4700UF 20% 25V RADIAL
25PX4700MEFCGC16X25 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 4700UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 7,856
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.07 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL213656472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 25V RADIAL | 95% | View |
| EKMG160ELL472ML25S | United Chemi-Con | CAP ALUM 4700UF 20% 16V RADIAL | 76% | View |
| UPA1C472MHD6 | Nichicon | CAP ALUM 4700UF 20% 16V RADIAL | 75% | View |
| 16WXA4700MEFC18X16 | Rubycon | CAP ALUM 4700UF 20% 16V RADIAL | 71% | View |
| EEU-FC1A472B | Panasonic Electronic Components | CAP ALUM 4700UF 20% 10V RADIAL | 69% | View |
| ELXZ160ELL472ML30S | United Chemi-Con | CAP ALUM 4700UF 20% 16V RADIAL | 69% | View |
Submit your RFQ for 25PX4700MEFCGC16X25 and get a quote within 24 hours.
