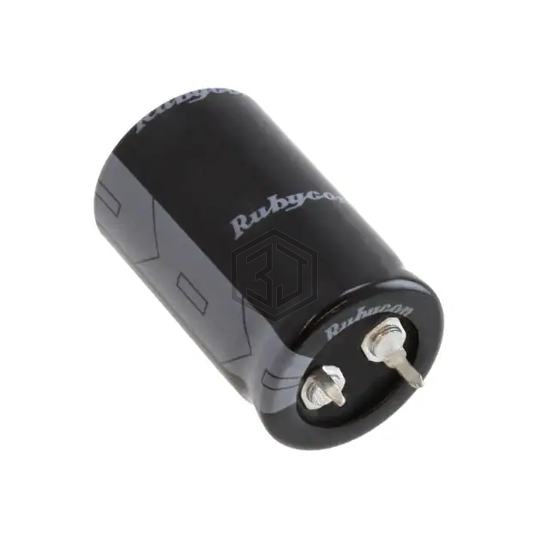

CAP ALUM 10000UF 20% 25V SNAP
25MXG10000MEFCSN22X35 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 10000UF 20% 25V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - Snap-In.
In Stock: 7,910
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.65 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.0475 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH250VSN103MQ35U | United Chemi-Con | CAP ALUM 10000UF 20% 25V SNAP | 94% | View |
| 35VXG10000MEFC35X30 | Rubycon | CAP ALUM 10000UF 20% 35V SNAP | 87% | View |
| 16VXG10000MEFC25X30 | Rubycon | CAP ALUM 10000UF 20% 16V SNAP | 75% | View |
| MAL225615103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 16V SNAP | 65% | View |
| MAL204864103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 10V RADIAL | 60% | View |
| LGU1H103MELC | Nichicon | CAP ALUM 10000UF 20% 50V SNAP | 58% | View |
Submit your RFQ for 25MXG10000MEFCSN22X35 and get a quote within 24 hours.
