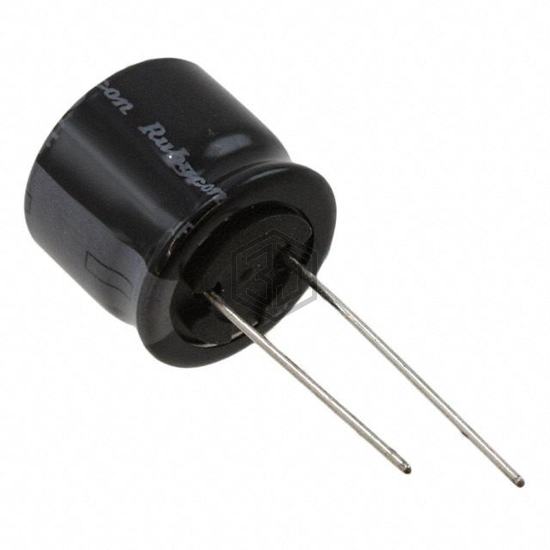

CAP ALUM 47UF 20% 250V RADIAL
250WXA47MEFCGC18X16 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 47UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 8,542
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 309 mA @ 120 Hz |
| Ripple Current @ High Frequency | 463.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL215253479E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47UF 20% 250V RADIAL | 100% | View |
| 860241180004 | Würth Elektronik | CAP ALUM 47UF 20% 250V RADIAL | 74% | View |
| 100ZL47MEFCT810X12.5 | Rubycon | CAP ALUM 47UF 20% 100V RADIAL | 65% | View |
| RF1H470MP26311ERU | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 58% | View |
| URZ2A470MPD1TD | Nichicon | CAP ALUM 47UF 20% 100V RADIAL | 56% | View |
| 500HXW47MEFR16X25 | Rubycon | CAP ALUM 47UF 20% 500V RADIAL | 56% | View |
Submit your RFQ for 250WXA47MEFCGC18X16 and get a quote within 24 hours.
