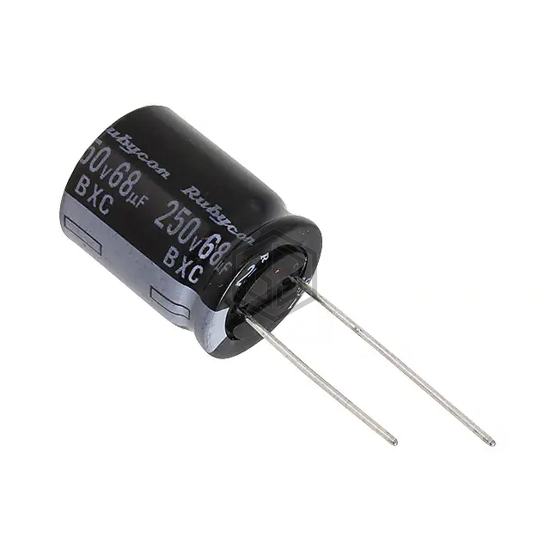

CAP ALUM 68UF 20% 250V RADIAL
250BXC68MEFCGC16X20 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 68UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 2,769
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 12000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 520 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.3 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UCY2C680MHD3TO | Nichicon | CAP ALUM 68UF 20% 160V RADIAL | 81% | View |
| 400LXW68MEFR12.5X35 | Rubycon | CAP ALUM 68UF 20% 400V RADIAL | 80% | View |
| 400BXW68MEFR14.5X30 | Rubycon | CAP ALUM 68UF 20% 400V RADIAL | 80% | View |
| 160BXC68MEFC12.5X20 | Rubycon | CAP ALUM 68UF 20% 160V RADIAL | 78% | View |
| EKXJ421ELL680MUP1S | United Chemi-Con | CAP ALUM 68UF 20% 420V RADIAL | 74% | View |
| 450HXW68MEFR10X55 | Rubycon | CAP ALUM 68UF 20% 450V RADIAL | 70% | View |
