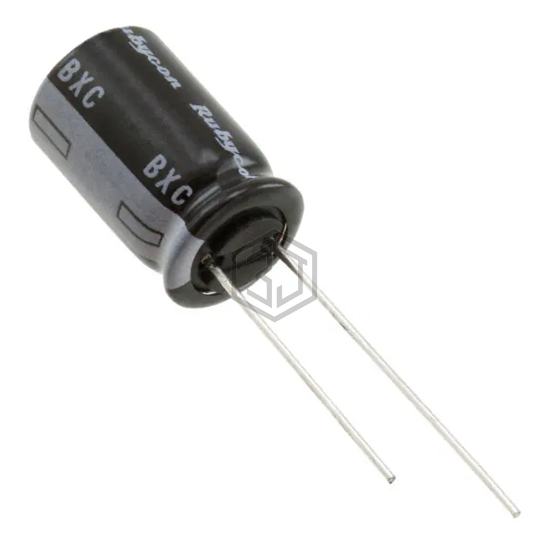

CAP ALUM 6.8UF 20% 250V RADIAL
250BXC6.8MEFCT810X12.5 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 6.8UF 20% 250V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 250 V, package / case Radial, Can.
In Stock: 4,698
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6.8 µF |
| Tolerance | ±20% |
| Voltage - Rated | 250 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 8000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 75 mA @ 120 Hz |
| Ripple Current @ High Frequency | 250 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.571" (14.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBX2D6R8MPL | Nichicon | CAP ALUM 6.8UF 20% 200V RADIAL | 78% | View |
| 450LLE6R8MEFC10X20 | Rubycon | CAP ALUM 6.8UF 20% 450V RADIAL | 77% | View |
| UBX2V6R8MPL | Nichicon | CAP ALUM 6.8UF 20% 350V RADIAL | 75% | View |
| VHT6.8M160 | NTE Electronics, Inc | CAP ALUM 6.8UF 20% 160V RADIAL | 71% | View |
| 160YXF6.8KEFCTA8X11.5 | Rubycon | CAP ALUM 6.8UF 10% 160V RADIAL | 71% | View |
| UCY2W6R8MPD1TD | Nichicon | CAP ALUM 6.8UF 20% 450V RADIAL | 70% | View |
Submit your RFQ for 250BXC6.8MEFCT810X12.5 and get a quote within 24 hours.
