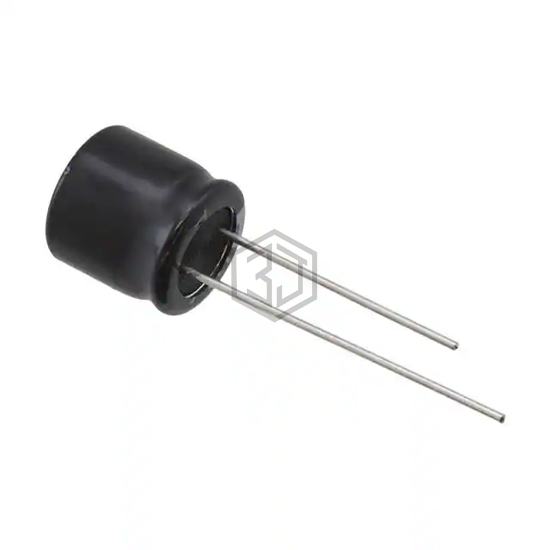

CAP ALUM 10UF 20% 200V RADIAL
200WA10MEFC10X9 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 10UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 1,690
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 85 mA @ 120 Hz |
| Ripple Current @ High Frequency | 127.5 mA @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPS2C100MPD1TD | Nichicon | CAP ALUM 10UF 20% 160V RADIAL | 85% | View |
| 106BPS100M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 10UF 20% 100V RADIAL | 73% | View |
| UBT1H100MPD | Nichicon | CAP ALUM 10UF 20% 50V RADIAL | 69% | View |
| MAL215266109E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10UF 20% 400V RADIAL | 69% | View |
| EY2A100MP20511U | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 57% | View |
| EEU-FR1H100 | Panasonic Electronic Components | CAP ALUM 10UF 20% 50V RADIAL TH | 51% | View |
Submit your RFQ for 200WA10MEFC10X9 and get a quote within 24 hours.
