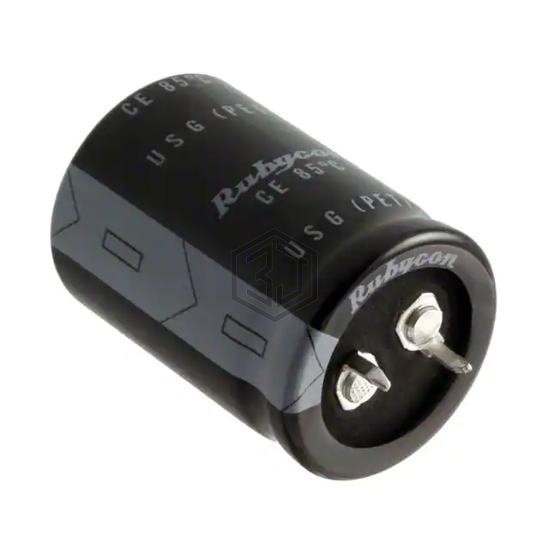

CAP ALUM 1000UF 20% 200V SNAP
200USG1000MEFCSN25X35 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 1000UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 1,641
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.25 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.875 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43544B2108M002 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 200V SNAP | 94% | View |
| LGU2P102MELC | Nichicon | CAP ALUM 1000UF 20% 220V SNAP | 83% | View |
| LKX2D102MESC30 | Nichicon | CAP ALUM 1000UF 20% 200V SNAP | 83% | View |
| B43510C5108M080 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 450V SNAP | 59% | View |
| 80ZLJ1000M18X35.5 | Rubycon | CAP ALUM 1000UF 20% 80V RADIAL | 57% | View |
| MAL209576102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 400V RADIAL | 56% | View |
Submit your RFQ for 200USG1000MEFCSN25X35 and get a quote within 24 hours.
