CAP ALUM 560UF 20% 200V SNAP

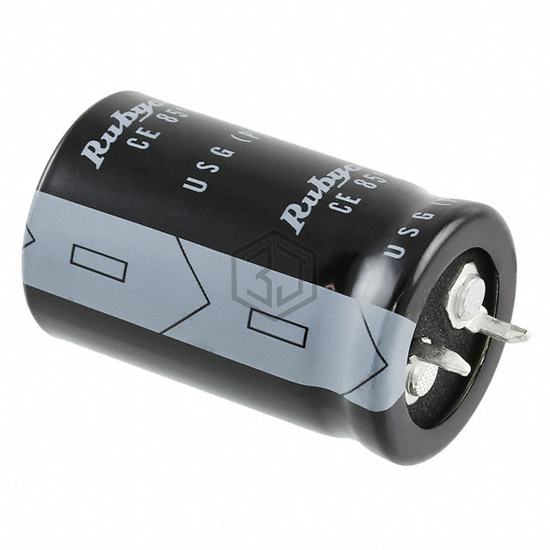

200USC560MEFCSN22X35 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 560UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 6,472
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.18 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.27 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 180USG560MEFC22X30 | Rubycon | CAP ALUM 560UF 20% 180V SNAP | 95% | View |
| B43305E2567M60 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 90% | View |
| MAL225763561E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 560UF 20% 250V SNAP | 89% | View |
| B43508B2567M87 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 200V SNAP | 87% | View |
| B43540E2567M67 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 87% | View |
| LGR2D561MELB30 | Nichicon | CAP ALUM 560UF 20% 200V SNAP | 82% | View |
Submit your RFQ for 200USC560MEFCSN22X35 and get a quote within 24 hours.
