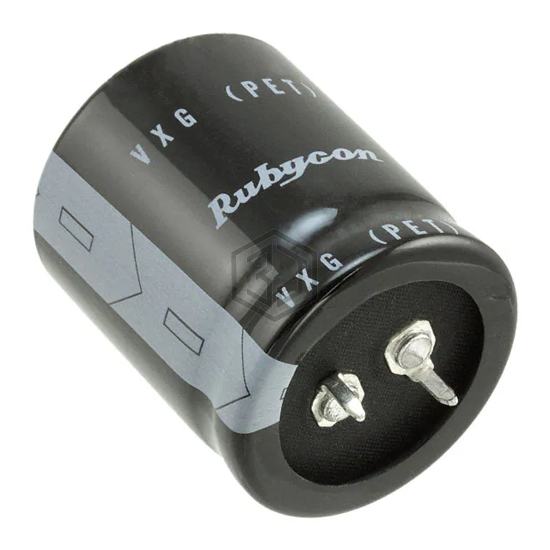

CAP ALUM 1000UF 20% 200V SNAP
200SXG1000MEFCSN30X35 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 1000UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 9,091
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.36 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 200MXC1000MEFCSN30X35 | Rubycon | CAP ALUM 1000UF 20% 200V SNAP | 98% | View |
| UBY1J102MHL | Nichicon | CAP ALUM 1000UF 20% 63V RADIAL | 68% | View |
| 108KXM050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 1000UF 20% 50V RADIAL | 67% | View |
| EEU-TA1H102 | Panasonic Electronic Components | CAP ALUM 1000UF 20% 50V RADIAL | 65% | View |
| B41856C7108M008 | EPCOS - TDK Electronics | CAP ALUM 1000UF 20% 35V RADIAL | 59% | View |
| RZW102M1VBK-1325S | SURGE | CAP ALUM 1000UF 20% 35V RADIAL | 58% | View |
Submit your RFQ for 200SXG1000MEFCSN30X35 and get a quote within 24 hours.
