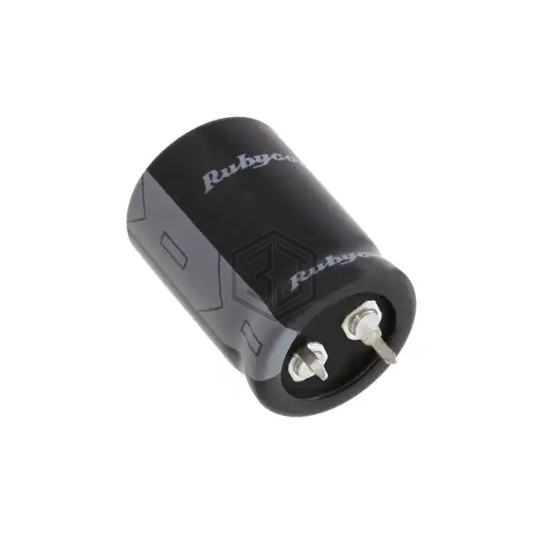

CAP ALUM 330UF 20% 200V SNAP
200MXG330MEFCSN20X30 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 330UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 9,232
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.46 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.19 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.787" Dia (20.00mm) |
| Height - Seated (Max) | 1.260" (32.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL216352331E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 330UF 20% 200V SNAP | 96% | View |
| 180RX30330MDLC18X45 | Rubycon | CAP ALUM 330UF 20% 180V RADIAL | 93% | View |
| ELXM161VSN331MP25S | United Chemi-Con | CAP ALUM 330UF 20% 160V SNAP | 80% | View |
| 420MXC330MEFC30X40 | Rubycon | CAP ALUM 330UF 20% 420V SNAP | 74% | View |
| PK2W331MND2545RY | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 73% | View |
| LQS2V331MELA40 | Nichicon | CAP ALUM 330UF 20% 350V SNAP | 72% | View |
Submit your RFQ for 200MXG330MEFCSN20X30 and get a quote within 24 hours.
