CAP ALUM 1200UF 20% 200V SNAP

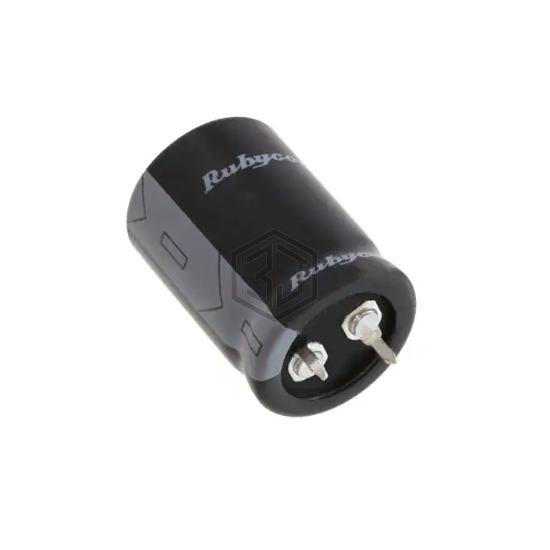

200MXG1200MEFCSN30X35 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 1200UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 1,776
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.65 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.975 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 381LR122M200J052 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1200UF 20% 200V SNAP | 100% | View |
| LGN2P122MELC35 | Nichicon | CAP ALUM 1200UF 20% 220V SNAP | 94% | View |
| B43508E2128M62 | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 250V SNAP | 89% | View |
| 383LX122M400N082 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1200UF 20% 400V SNAP | 63% | View |
| EEU-FR1E122L | Panasonic Electronic Components | CAP ALUM 1200UF 20% 25V RADIAL | 61% | View |
| B43516B9128M000 | EPCOS - TDK Electronics | CAP ALUM 1200UF 20% 400V SNAP | 55% | View |
Submit your RFQ for 200MXG1200MEFCSN30X35 and get a quote within 24 hours.
