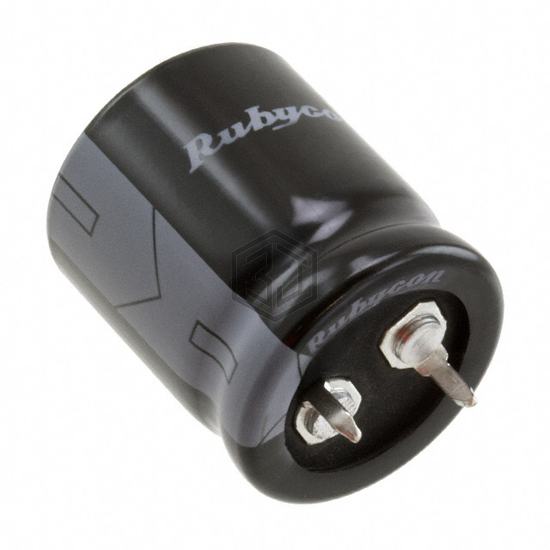

CAP ALUM 270UF 20% 200V SNAP
200MXC270MEFCSN22X25 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 270UF 20% 200V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 7,192
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.65 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 200MXC270MEFC20X30 | Rubycon | CAP ALUM 270UF 20% 200V SNAP | 100% | View |
| MAL225912271E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 270UF 20% 200V SNAP | 87% | View |
| UCY2D271MHD6 | Nichicon | CAP ALUM 270UF 20% 200V RADIAL | 81% | View |
| 100ZLJ270M16X20 | Rubycon | CAP ALUM 270UF 20% 100V RADIAL | 72% | View |
| 35ZLJ270M10X12.5 | Rubycon | CAP ALUM 270UF 20% 35V RADIAL | 72% | View |
| EKZN630ELL271MJ20S | United Chemi-Con | CAP ALUM 270UF 20% 63V RADIAL | 70% | View |
Submit your RFQ for 200MXC270MEFCSN22X25 and get a quote within 24 hours.
