CAP ALUM 6800UF 20% 200V SCREW

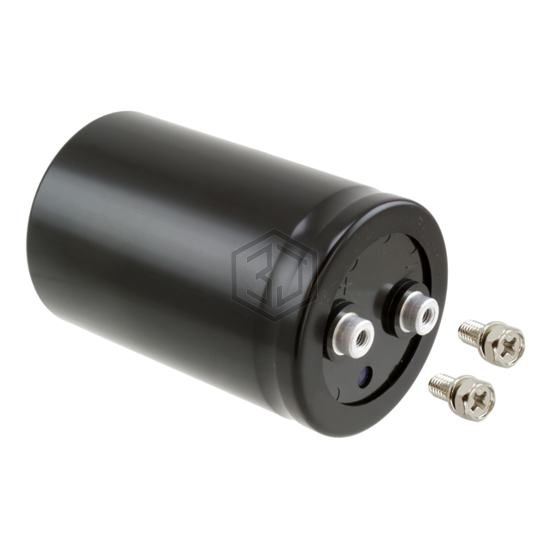

200LSQ6800MNB64X99 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 6800UF 20% 200V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -25°C ~ 85°C, voltage - rated 200 V, package / case Radial, Can - Screw Terminals.
In Stock: 25
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 85°C |
| Operating Temperature | -25°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 9.5 A @ 120 Hz |
| Ripple Current @ High Frequency | 11.21 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.110" (28.20mm) |
| Size / Dimension | 2.520" Dia (64.00mm) |
| Height - Seated (Max) | 4.016" (102.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
Submit your RFQ for 200LSQ6800MNB64X99 and get a quote within 24 hours.
