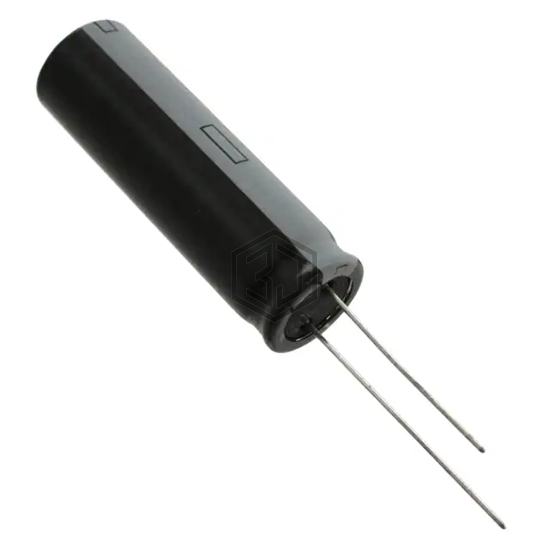

CAP ALUM 220UF 20% 200V RADIAL
200KXW220MEFC12.5X40 is a Aluminum Electrolytic Capacitors manufactured by Rubycon. CAP ALUM 220UF 20% 200V RADIAL. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can.
In Stock: 3,480
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 800 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.12 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.654" (42.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMQ251VSN221MP25S | United Chemi-Con | CAP ALUM 220UF 20% 250V SNAP | 81% | View |
| UCS2D221MHD1TN | Nichicon | CAP ALUM 220UF 20% 200V RADIAL | 73% | View |
| EEU-TP1V221L | Panasonic Electronic Components | CAP ALUM 220UF 20% 35V RADIAL | 66% | View |
| MAL213659221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 100V RADIAL | 65% | View |
| 860080675015 | Würth Elektronik | CAP ALUM 220UF 20% 50V RADIAL | 65% | View |
| UCY2E221MHD | Nichicon | CAP ALUM 220UF 20% 250V RADIAL | 62% | View |
Submit your RFQ for 200KXW220MEFC12.5X40 and get a quote within 24 hours.
